One path. Commanded departures.

A complete still alternative to video. The original full-resolution scientific figures and CAD view provenance remain available in the asset register.

Return to film · Read complete transcript

An integrated twelve-3U study. Twelve 4 kg 3U envelopes. Two six-level storage banks. One reusable electromagnetic carrier.
0–12 s · An integrated twelve-3U study.

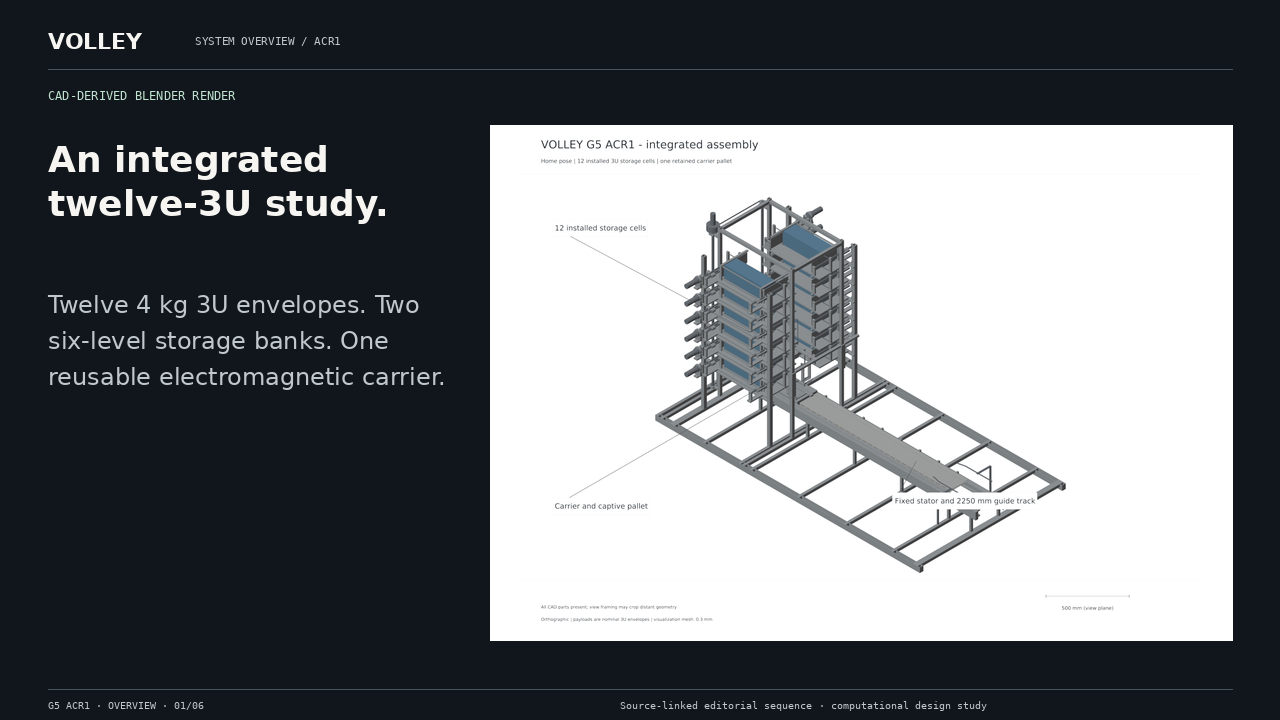

Twelve 4 kg 3U envelopes. Two six-level storage banks. One reusable electromagnetic carrier.

CAD-derived Blender render
Select. Feed. Capture. A guided lead screw transfers one payload sideways into the Z-indexed lift. The lift holds the payload and captive pallet.
12–24 s · Select. Feed. Capture.

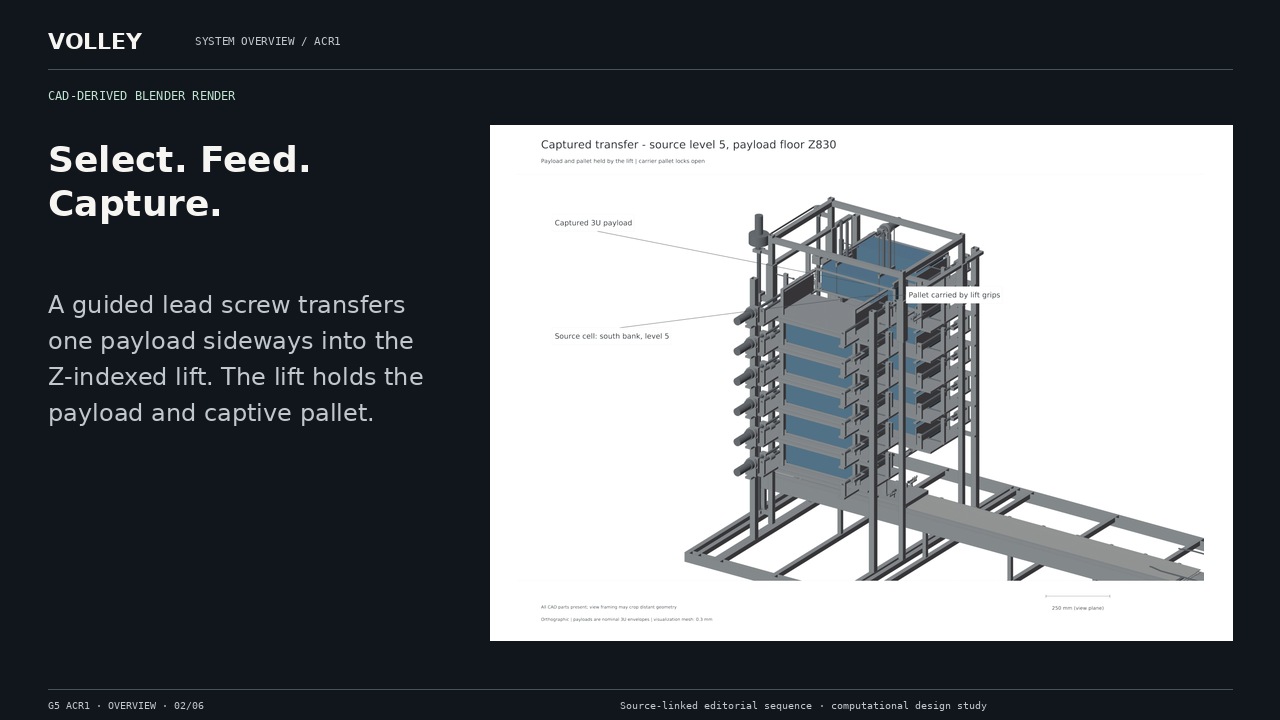

A guided lead screw transfers one payload sideways into the Z-indexed lift. The lift holds the payload and captive pallet.

CAD-derived Blender render
Transfer custody positively. Carrier bayonets and lift grip pins overlap custody at handoff. Prove the destination restraint before releasing the other.
24–36 s · Transfer custody positively.

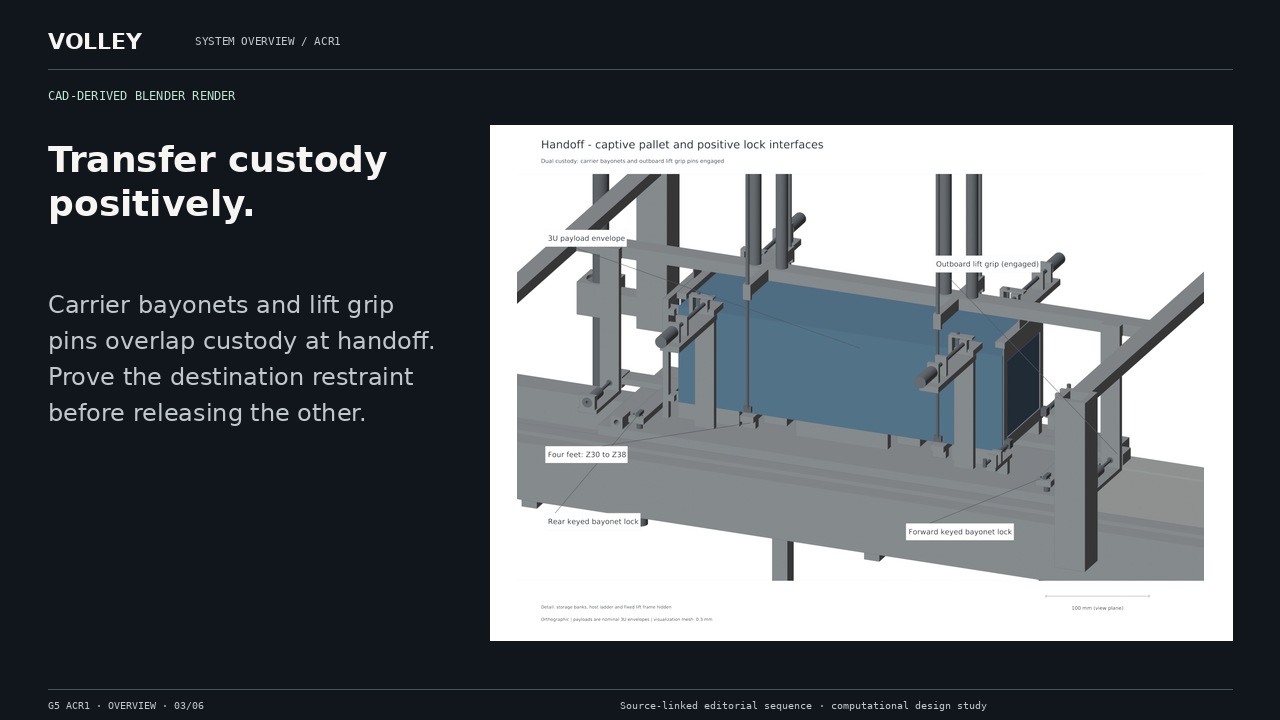

Carrier bayonets and lift grip pins overlap custody at handoff. Prove the destination restraint before releasing the other.

CAD-derived Blender render
Dock. Prove. Clear. The pallet locks to the carrier. The custody frame withdraws clear of the launch path before the shot is enabled.
36–48 s · Dock. Prove. Clear.

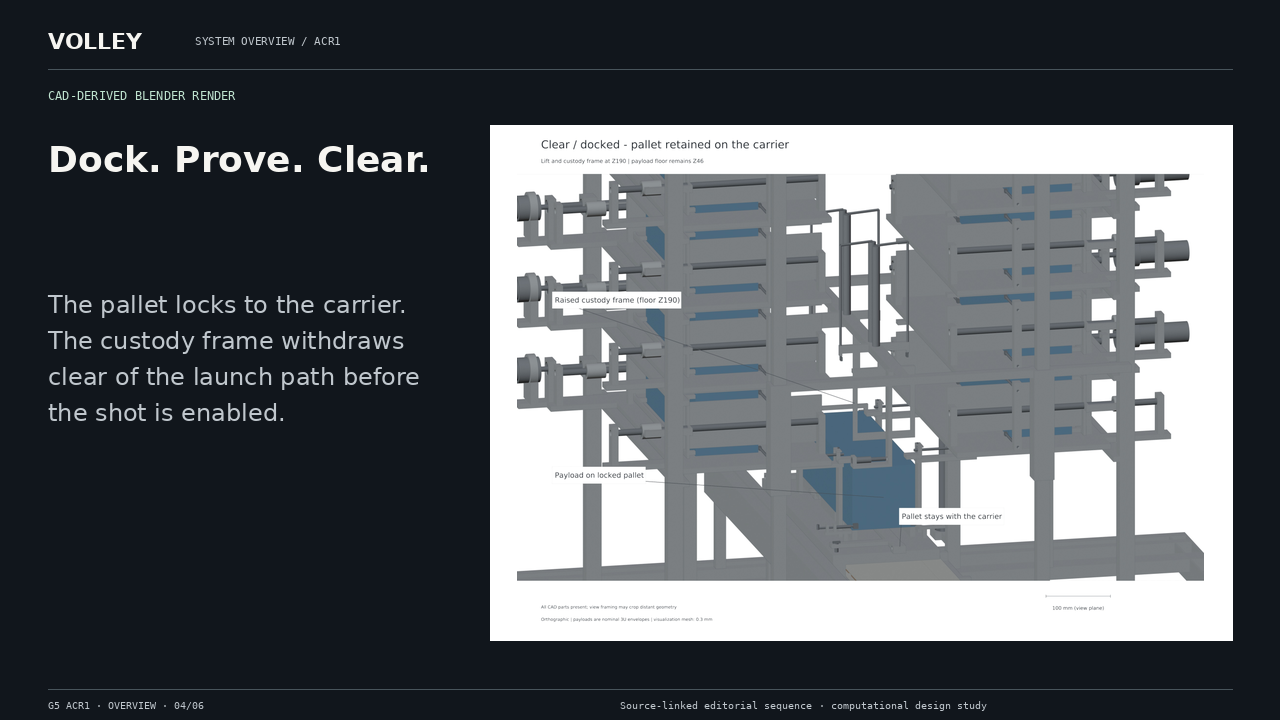

The pallet locks to the carrier. The custody frame withdraws clear of the launch path before the shot is enabled.

CAD-derived Blender render
Only the payload departs. The payload departs along +X. The captive pallet remains locked to the carrier through arrest and return to its loading datum.
48–60 s · Only the payload departs.

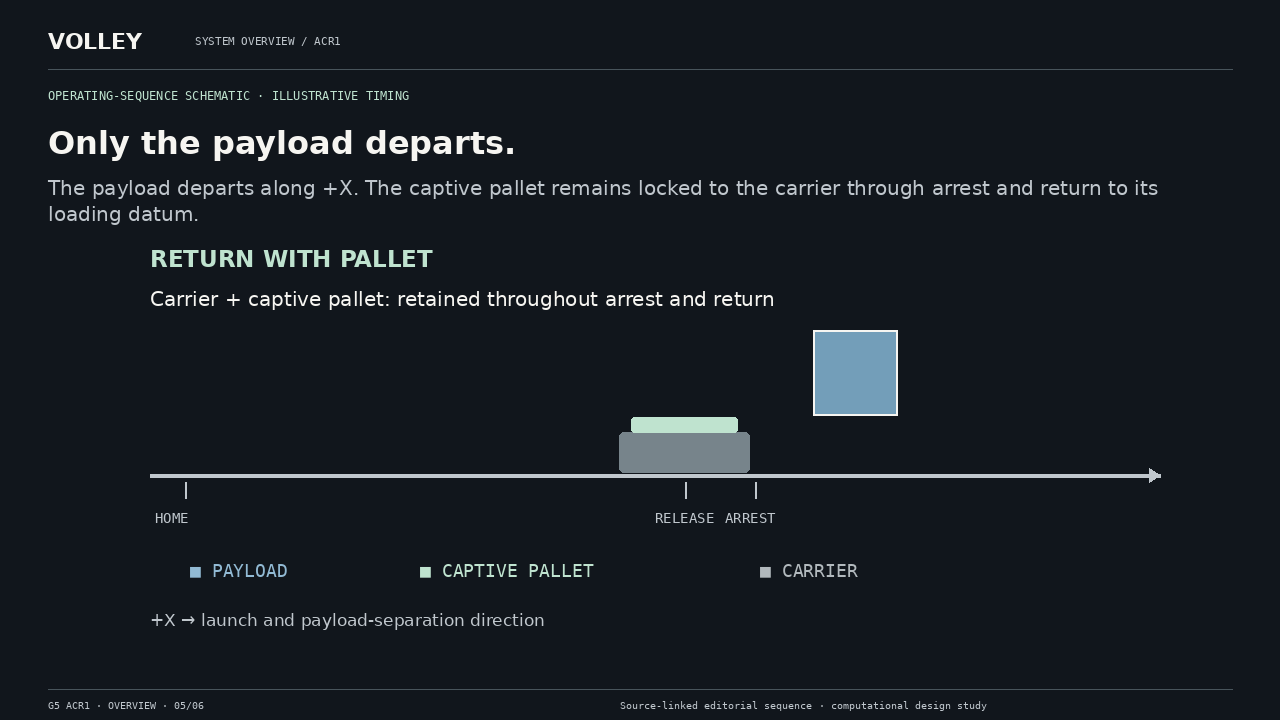

The payload departs along +X. The captive pallet remains locked to the carrier through arrest and return to its loading datum.

Operating-sequence schematic · illustrative timing
Evaluate the complete trade. Modeled 1–3 m/s commands. Installed device allocation 156.557 kg. These preplanned mission cases show no advantage over the ideal ground-pretrimmed spring comparator.
60–72 s · Evaluate the complete trade.

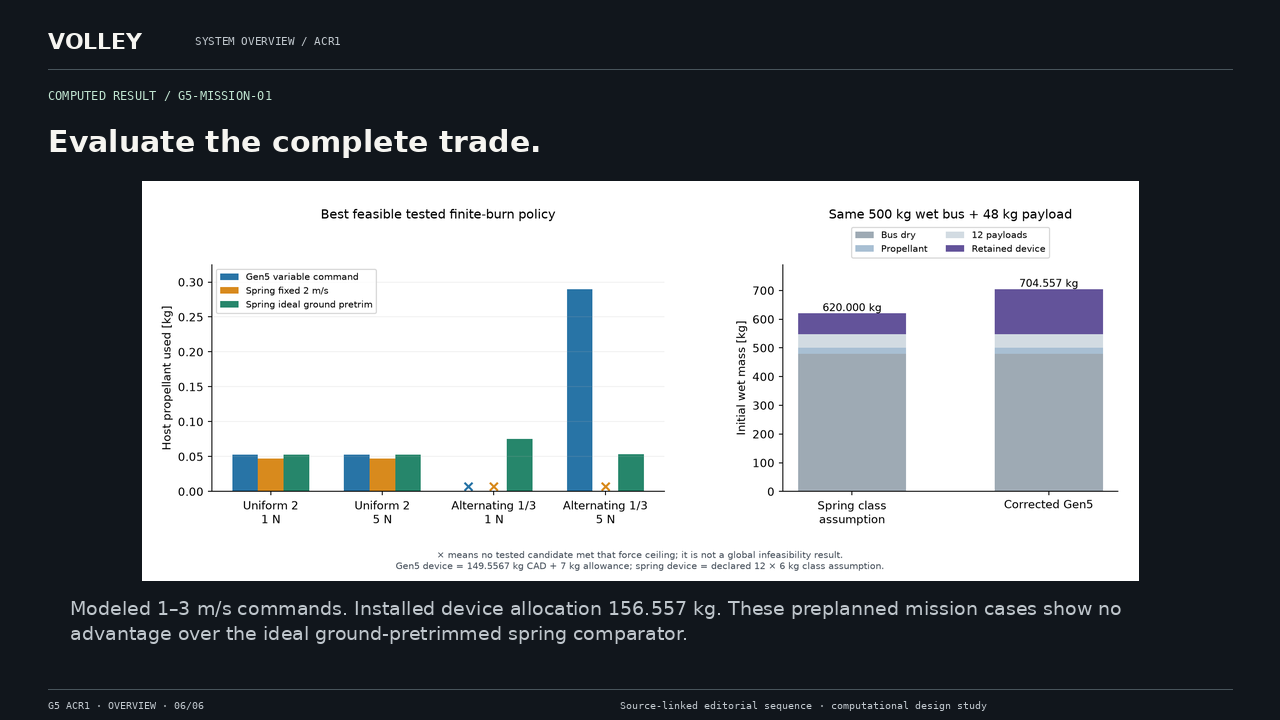

Modeled 1–3 m/s commands. Installed device allocation 156.557 kg. These preplanned mission cases show no advantage over the ideal ground-pretrimmed spring comparator.

Computed result / G5-MISSION-01
