VOLLEYCOMMAND / RELEASE / REPEAT
G5-MISSION-01 / frozen twelve-release Gen5 case / stills

A host-assisted delivery study.

A complete still alternative to video. The original full-resolution scientific figures and CAD view provenance remain available in the asset register.

Return to film · Read complete transcript

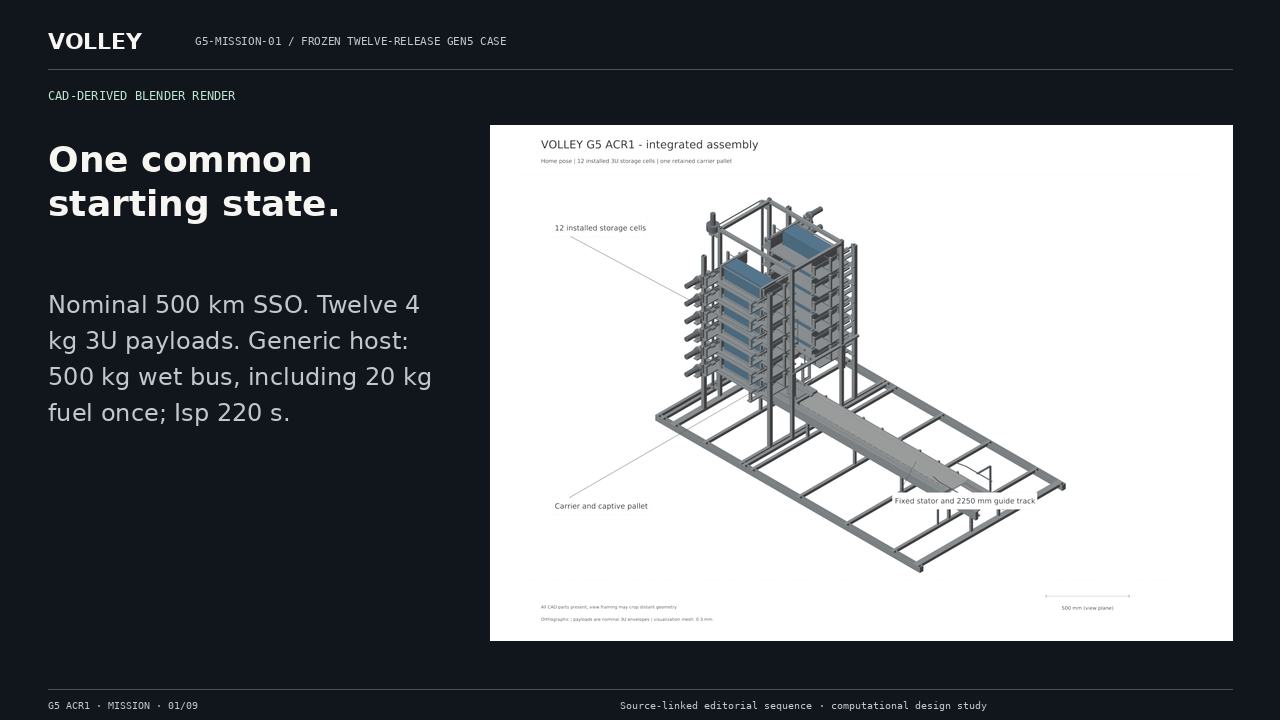

One common starting state. Nominal 500 km SSO. Twelve 4 kg 3U payloads. Generic host: 500 kg wet bus, including 20 kg fuel once; Isp 220 s.
0–12 s · One common starting state.

Nominal 500 km SSO. Twelve 4 kg 3U payloads. Generic host: 500 kg wet bus, including 20 kg fuel once; Isp 220 s.

CAD-derived Blender render

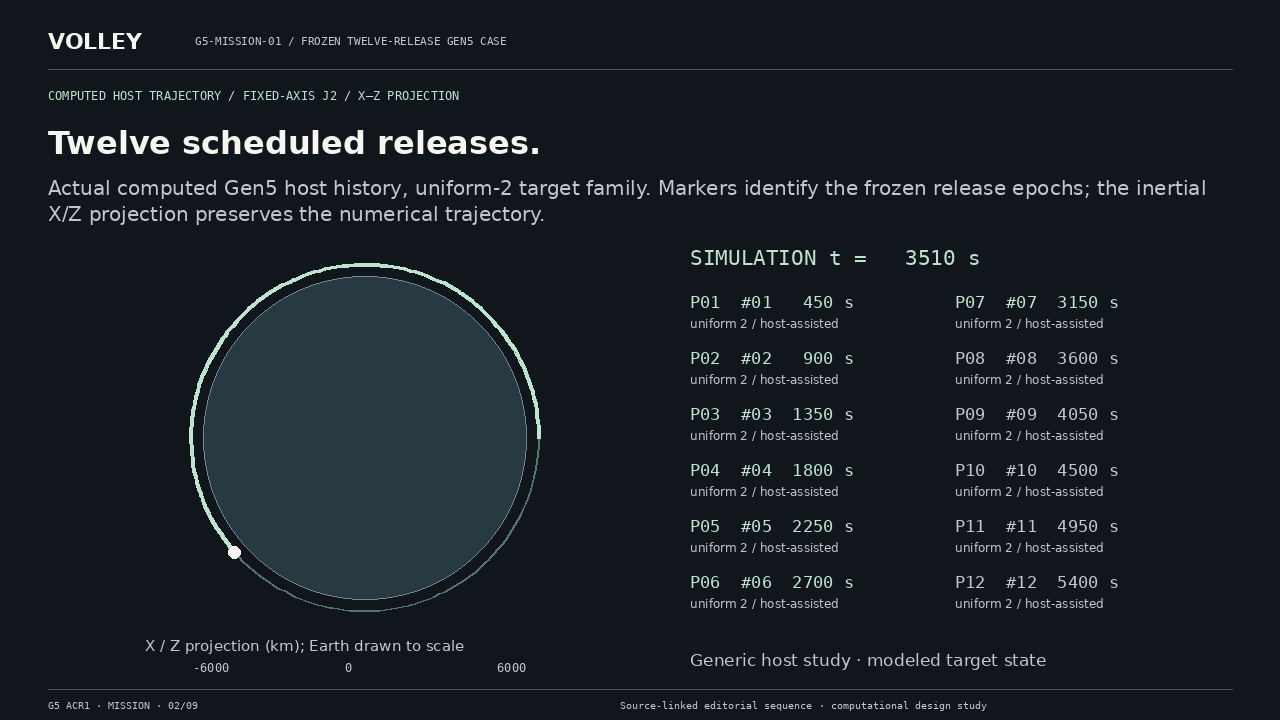

Twelve scheduled releases. Actual computed Gen5 host history, uniform-2 target family. Markers identify the frozen release epochs; the inertial X/Z projection preserves the numerical trajectory.
12–24 s · Twelve scheduled releases.

Actual computed Gen5 host history, uniform-2 target family. Markers identify the frozen release epochs; the inertial X/Z projection preserves the numerical trajectory.

Computed host trajectory / fixed-axis J2 / X–Z projection

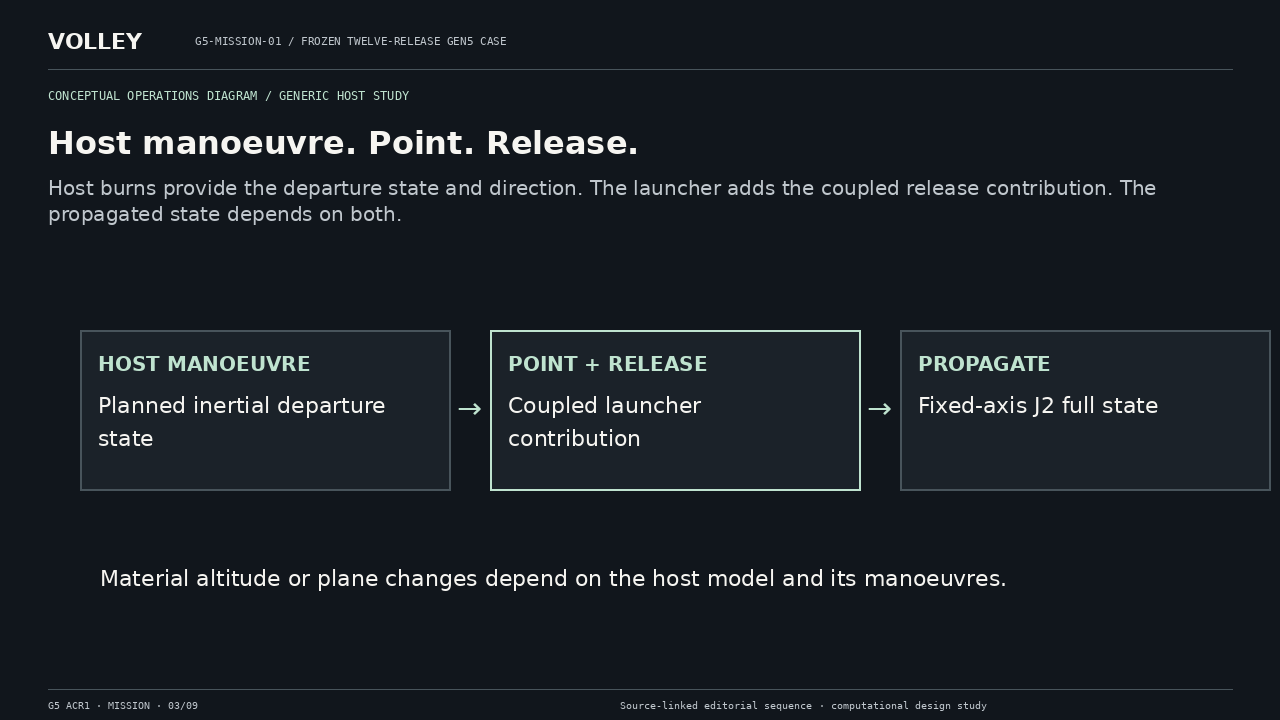

Host manoeuvre. Point. Release. Host burns provide the departure state and direction. The launcher adds the coupled release contribution. The propagated state depends on both.
24–36 s · Host manoeuvre. Point. Release.

Host burns provide the departure state and direction. The launcher adds the coupled release contribution. The propagated state depends on both.

Conceptual operations diagram / generic host study

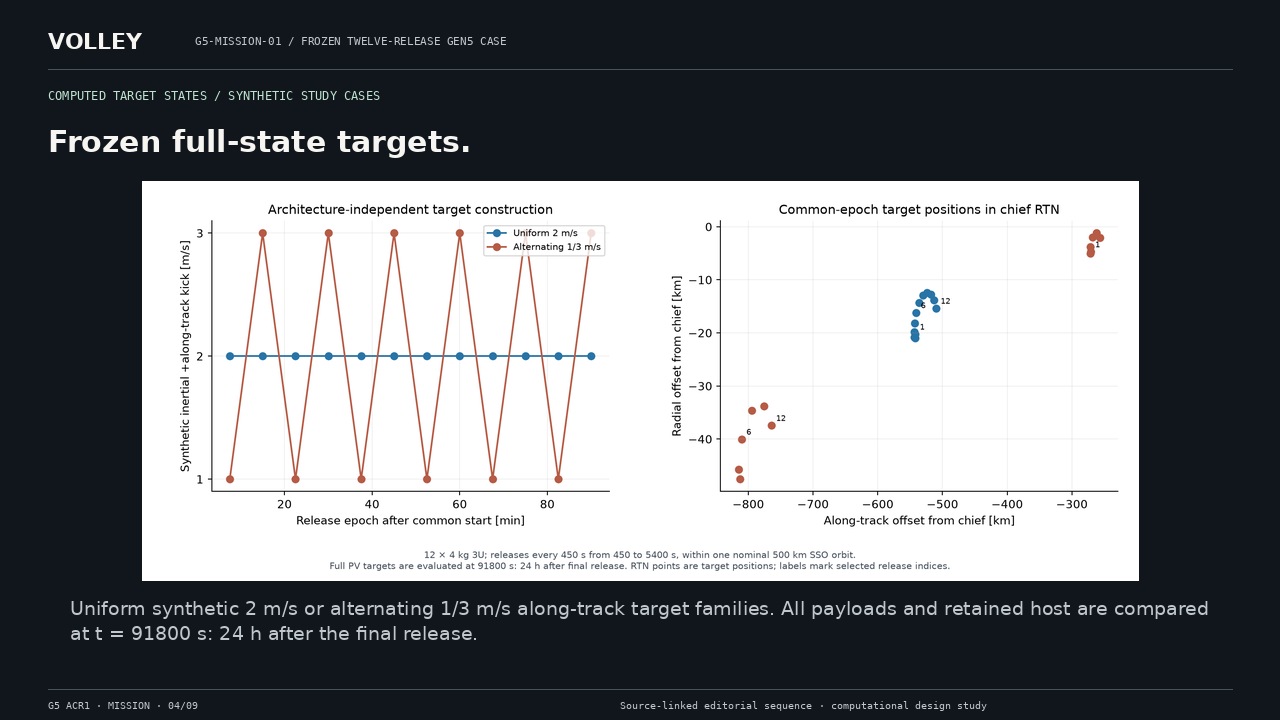

Frozen full-state targets. Uniform synthetic 2 m/s or alternating 1/3 m/s along-track target families. All payloads and retained host are compared at t = 91800 s: 24 h after the final release.
36–48 s · Frozen full-state targets.

Uniform synthetic 2 m/s or alternating 1/3 m/s along-track target families. All payloads and retained host are compared at t = 91800 s: 24 h after the final release.

Computed target states / synthetic study cases

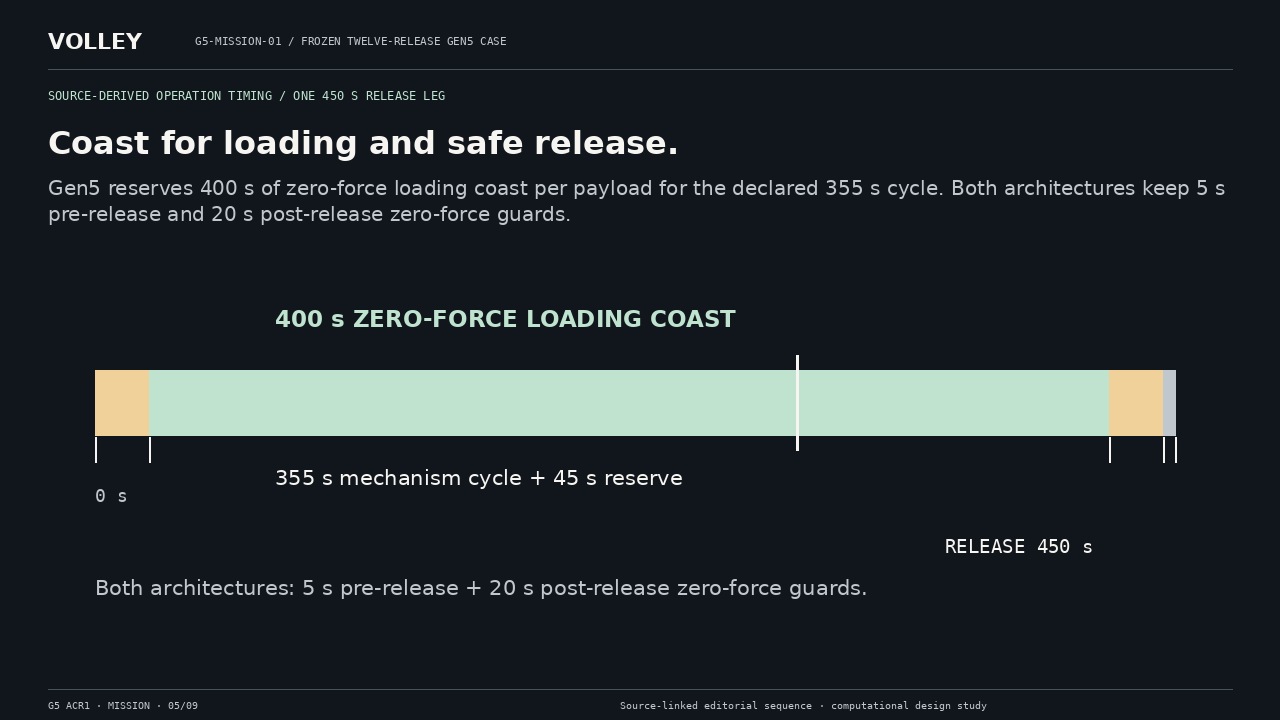

Coast for loading and safe release. Gen5 reserves 400 s of zero-force loading coast per payload for the declared 355 s cycle. Both architectures keep 5 s pre-release and 20 s post-release zero-force guards.
48–60 s · Coast for loading and safe release.

Gen5 reserves 400 s of zero-force loading coast per payload for the declared 355 s cycle. Both architectures keep 5 s pre-release and 20 s post-release zero-force guards.

Source-derived operation timing / one 450 s release leg

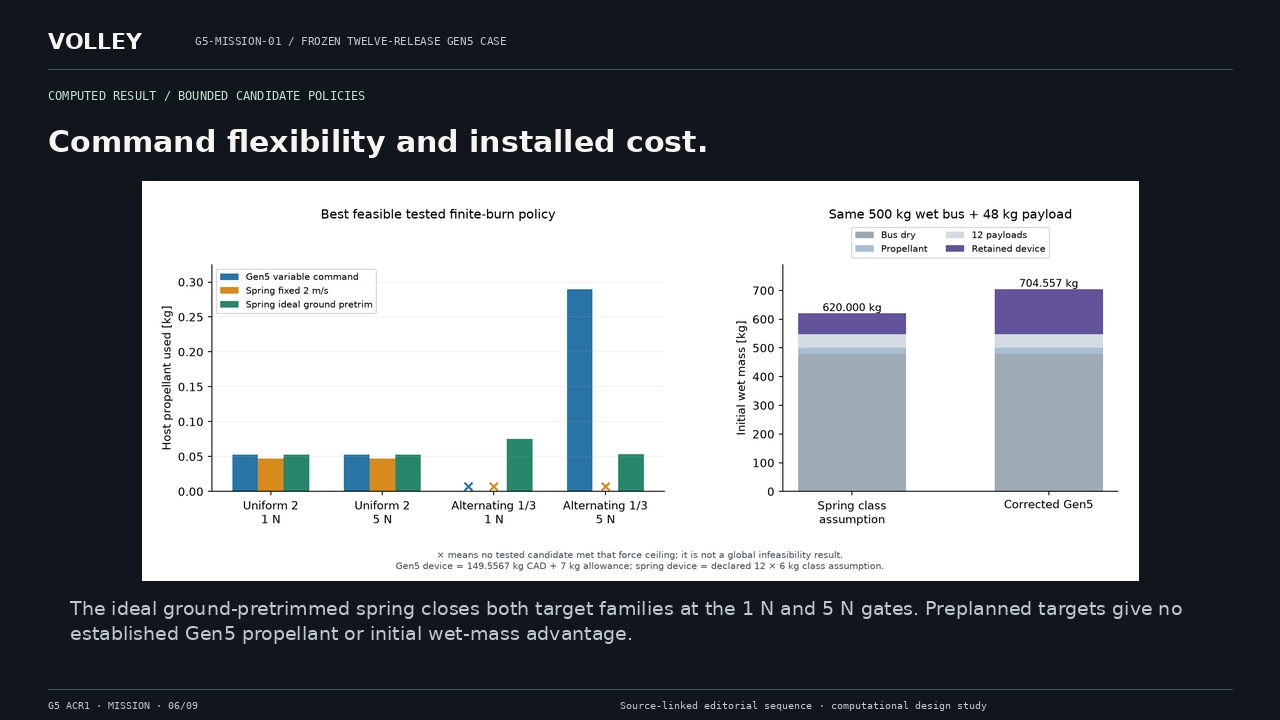

Command flexibility and installed cost. The ideal ground-pretrimmed spring closes both target families at the 1 N and 5 N gates. Preplanned targets give no established Gen5 propellant or initial wet-mass advantage.
60–72 s · Command flexibility and installed cost.

The ideal ground-pretrimmed spring closes both target families at the 1 N and 5 N gates. Preplanned targets give no established Gen5 propellant or initial wet-mass advantage.

Computed result / bounded candidate policies

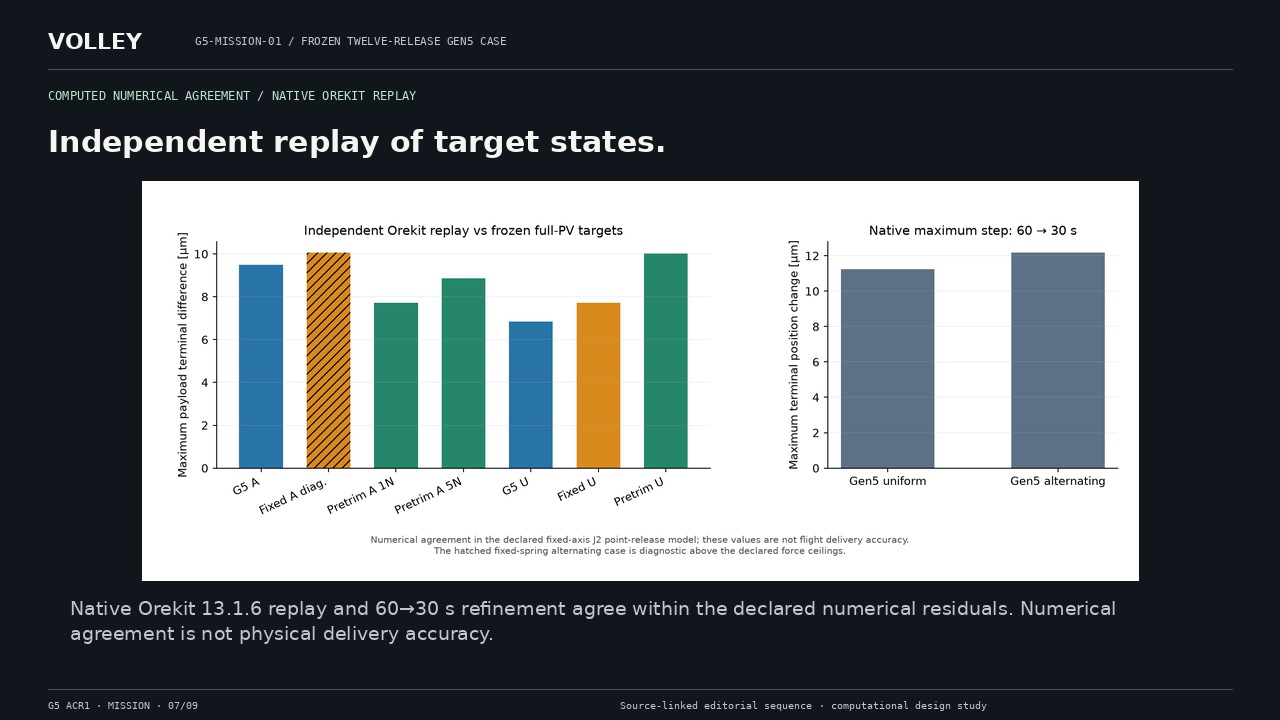

Independent replay of target states. Native Orekit 13.1.6 replay and 60→30 s refinement agree within the declared numerical residuals. Numerical agreement is not physical delivery accuracy.
72–84 s · Independent replay of target states.

Native Orekit 13.1.6 replay and 60→30 s refinement agree within the declared numerical residuals. Numerical agreement is not physical delivery accuracy.

Computed numerical agreement / native Orekit replay

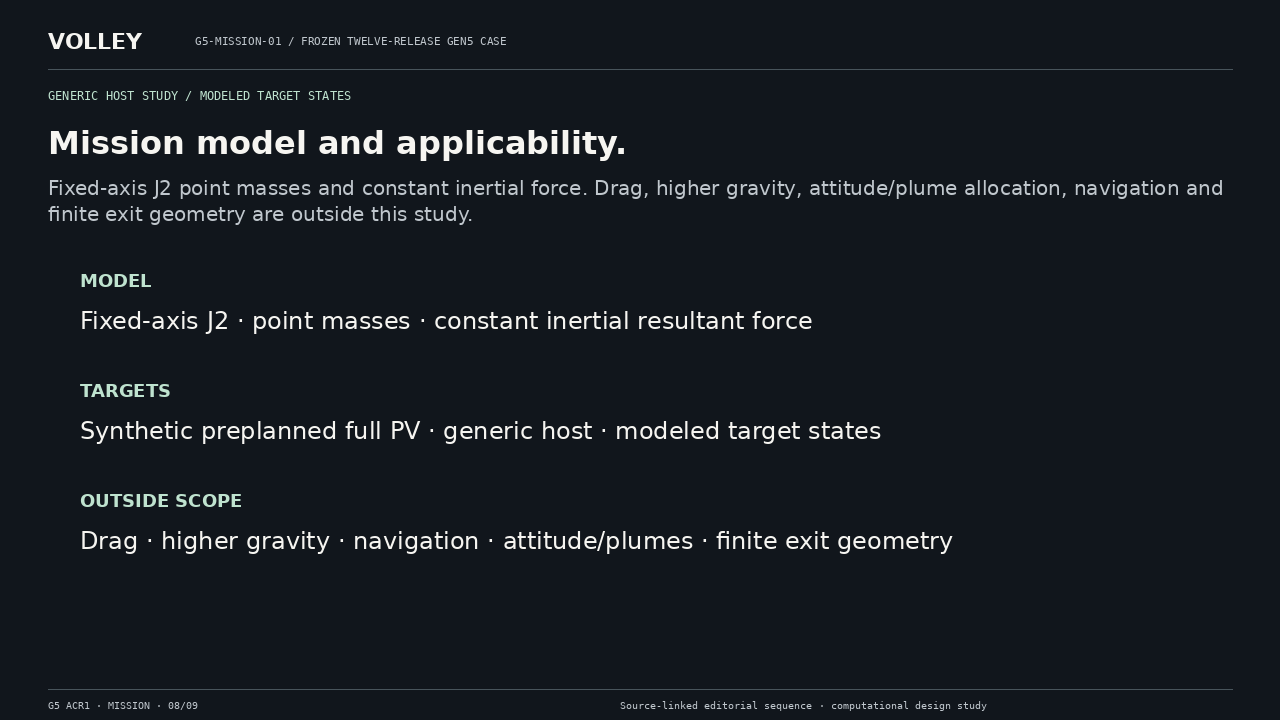

Mission model and applicability. Fixed-axis J2 point masses and constant inertial force. Drag, higher gravity, attitude/plume allocation, navigation and finite exit geometry are outside this study.
84–96 s · Mission model and applicability.

Fixed-axis J2 point masses and constant inertial force. Drag, higher gravity, attitude/plume allocation, navigation and finite exit geometry are outside this study.

Generic host study / modeled target states

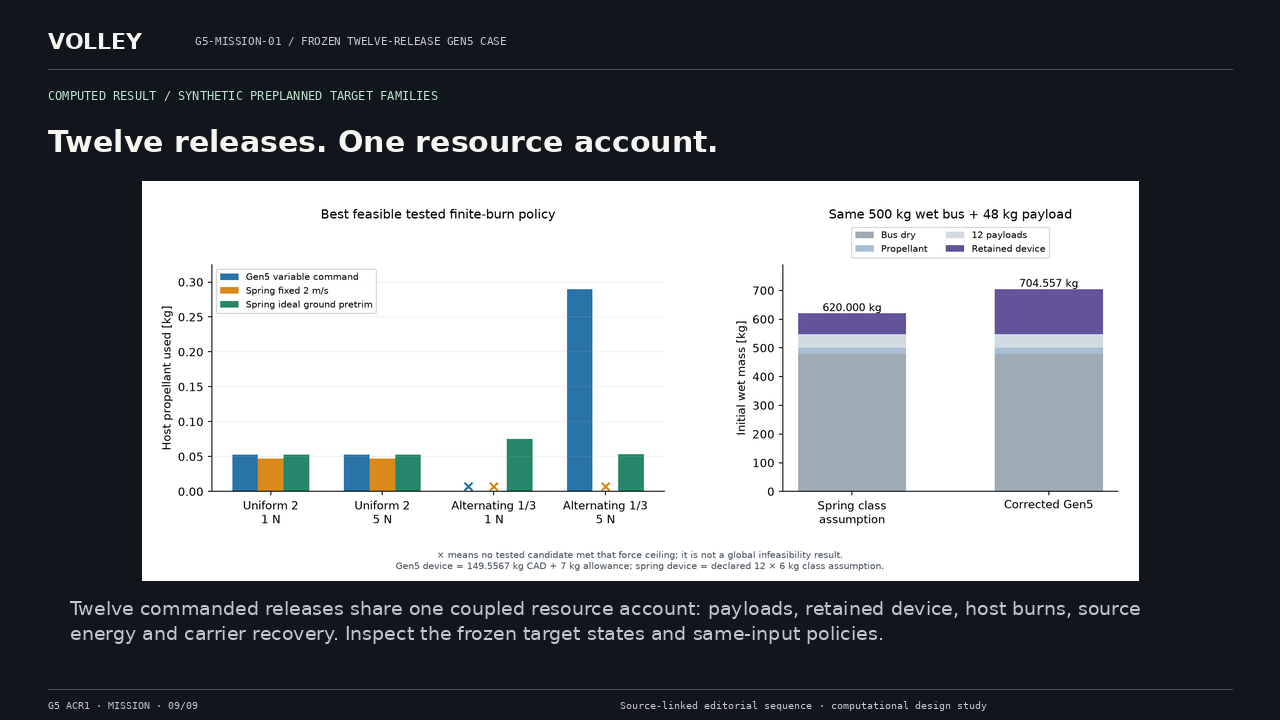

Twelve releases. One resource account. Twelve commanded releases share one coupled resource account: payloads, retained device, host burns, source energy and carrier recovery. Inspect the frozen target states and same-input policies.
96–108 s · Twelve releases. One resource account.

Twelve commanded releases share one coupled resource account: payloads, retained device, host burns, source energy and carrier recovery. Inspect the frozen target states and same-input policies.

Computed result / synthetic preplanned target families
