Start with a controlled configuration. VOLLEY-G5-ACR1: twelve 4 kg 3U payloads, two six-level banks, guided screw transfer, indexed lift and captive carrier pallet.
0–9 s · Start with a controlled configuration.

VOLLEY-G5-ACR1: twelve 4 kg 3U payloads, two six-level banks, guided screw transfer, indexed lift and captive carrier pallet.

CAD-derived Blender render
Resolve the finite geometry. Native geometry defines the magnetic gap, conductor placement and finite stator. CAD/STEP is preserved beside the computational model.
9–18 s · Resolve the finite geometry.

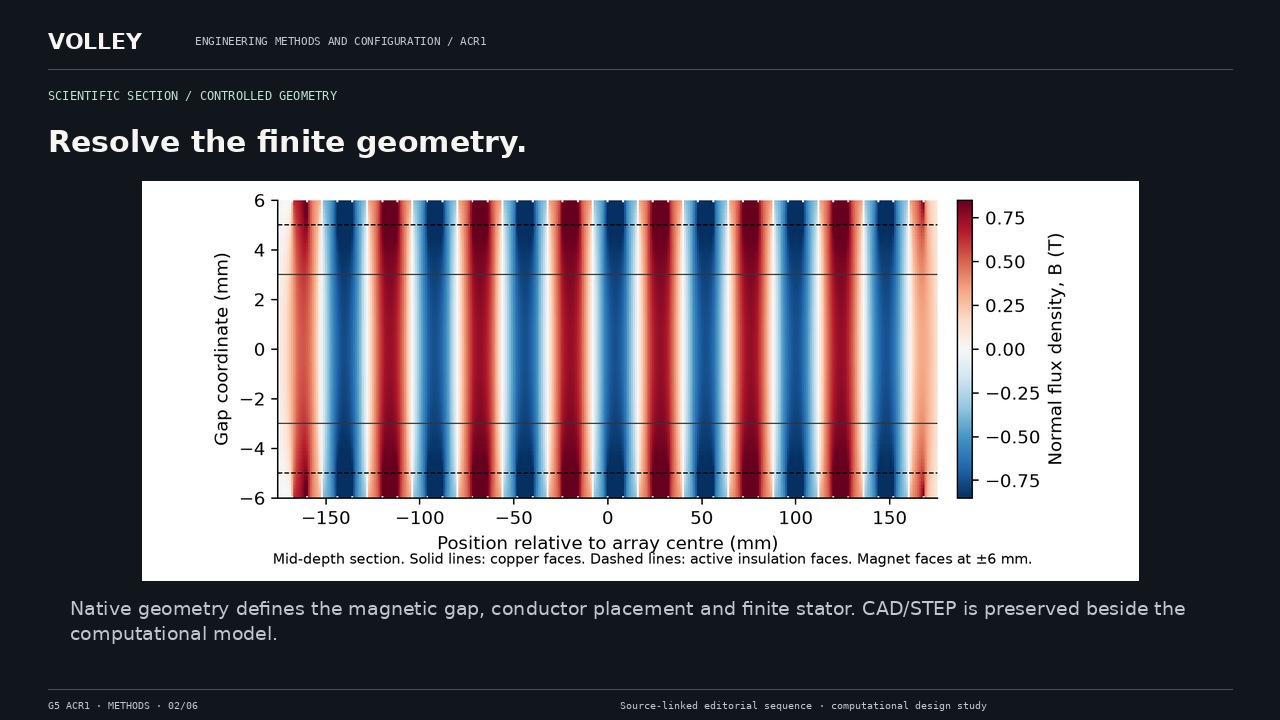

Native geometry defines the magnetic gap, conductor placement and finite stator. CAD/STEP is preserved beside the computational model.

Scientific section / controlled geometry
Couple the source and moving system. The evaluated 1–3 m/s commands include finite force, electrical behavior, release recoil and carrier arrest within the declared computational assumptions.
18–27 s · Couple the source and moving system.

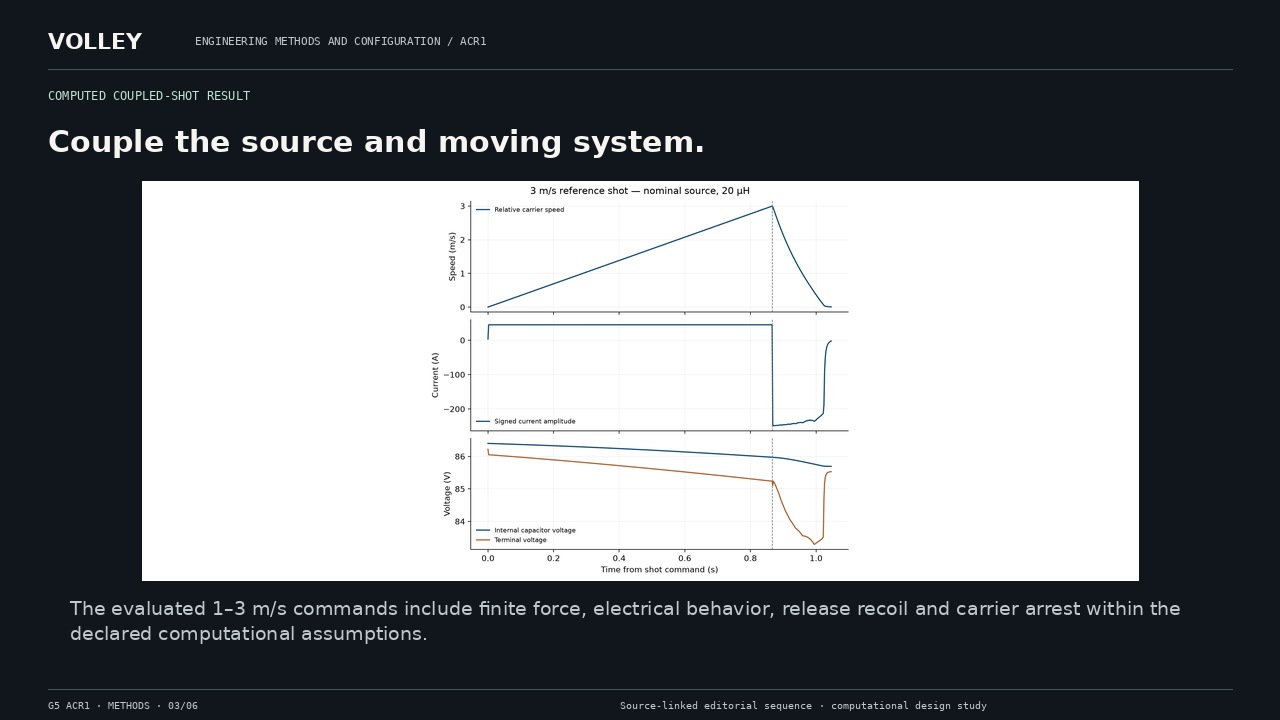

The evaluated 1–3 m/s commands include finite force, electrical behavior, release recoil and carrier arrest within the declared computational assumptions.

Computed coupled-shot result
Account for the whole shot. The ledger records mechanical energy and copper, inverter, bank and auxiliary terms. Installed device allocation is 149.55672 kg CAD mass plus 7 kg.
27–36 s · Account for the whole shot.

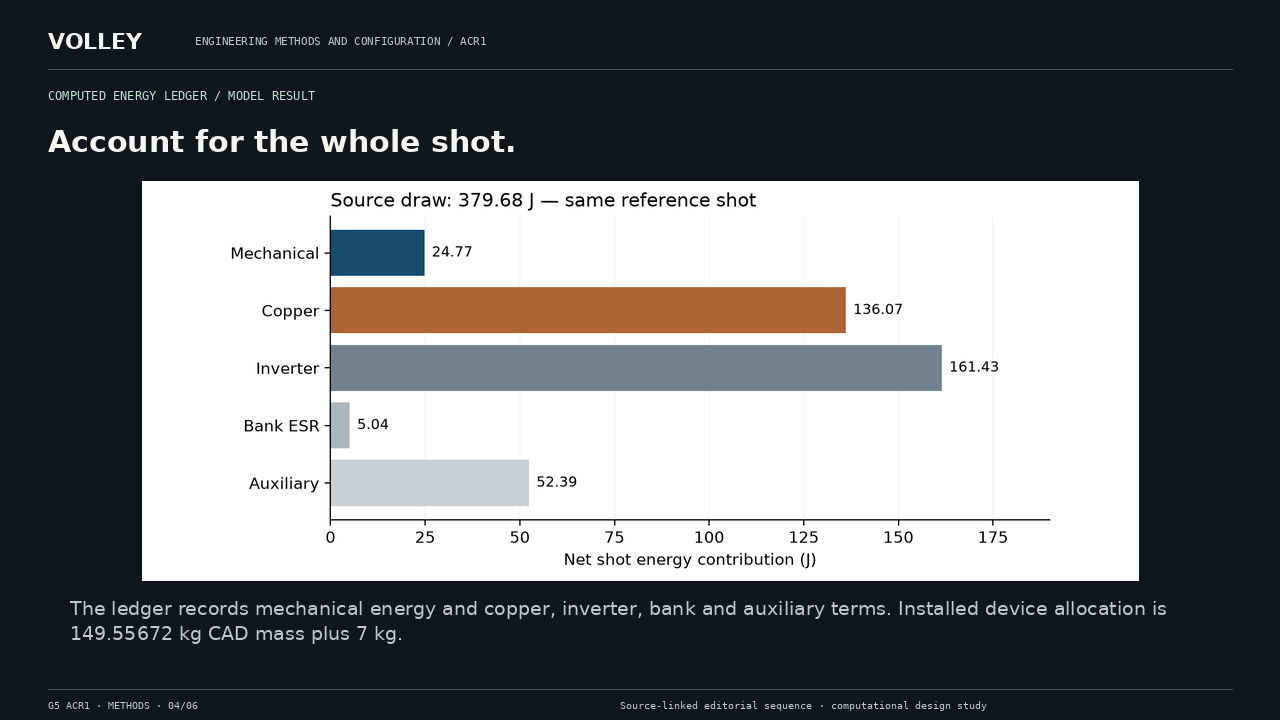

The ledger records mechanical energy and copper, inverter, bank and auxiliary terms. Installed device allocation is 149.55672 kg CAD mass plus 7 kg.

Computed energy ledger / model result
Replay the mission independently. Frozen synthetic target PV states, continuous host arcs, release momentum and independent mass-flow checks support numerical consistency.
36–45 s · Replay the mission independently.

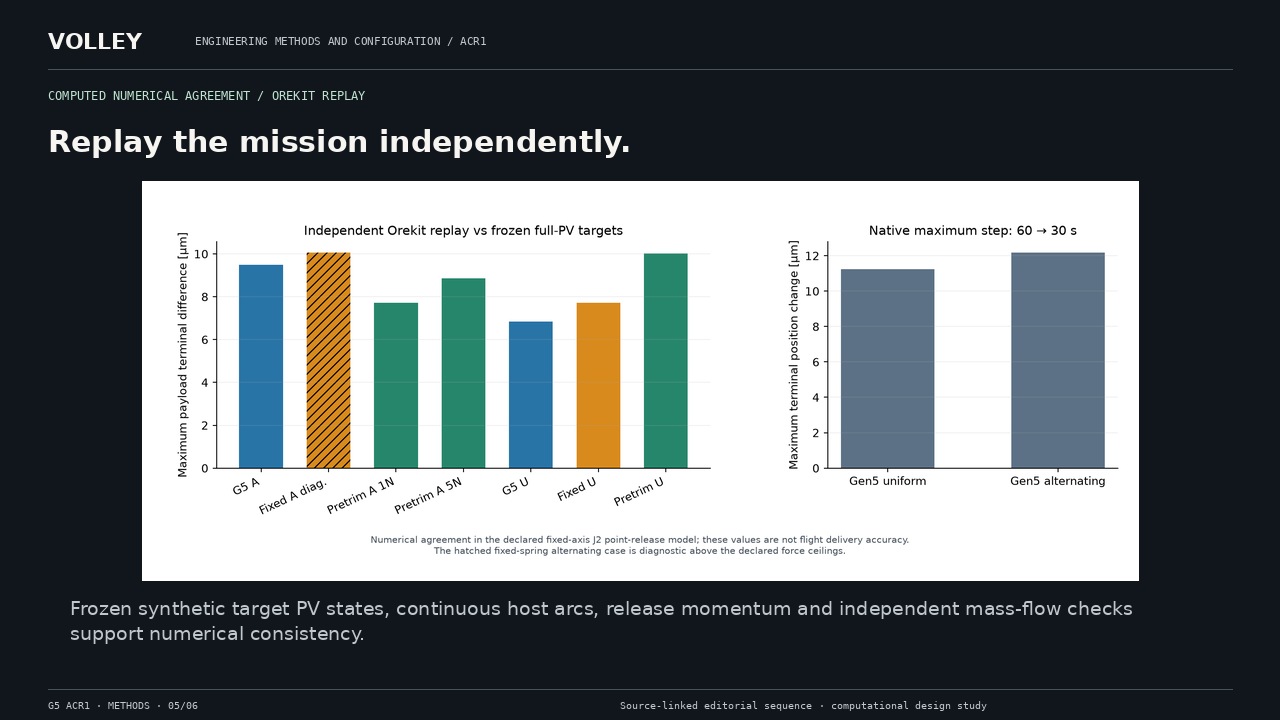

Frozen synthetic target PV states, continuous host arcs, release momentum and independent mass-flow checks support numerical consistency.

Computed numerical agreement / Orekit replay
Use the result to set the next gate. The evaluated integrated configuration has a traceable computational record. Gen6 mixed-size work and instrumented hardware correlation remain separately identified development.
45–54 s · Use the result to set the next gate.

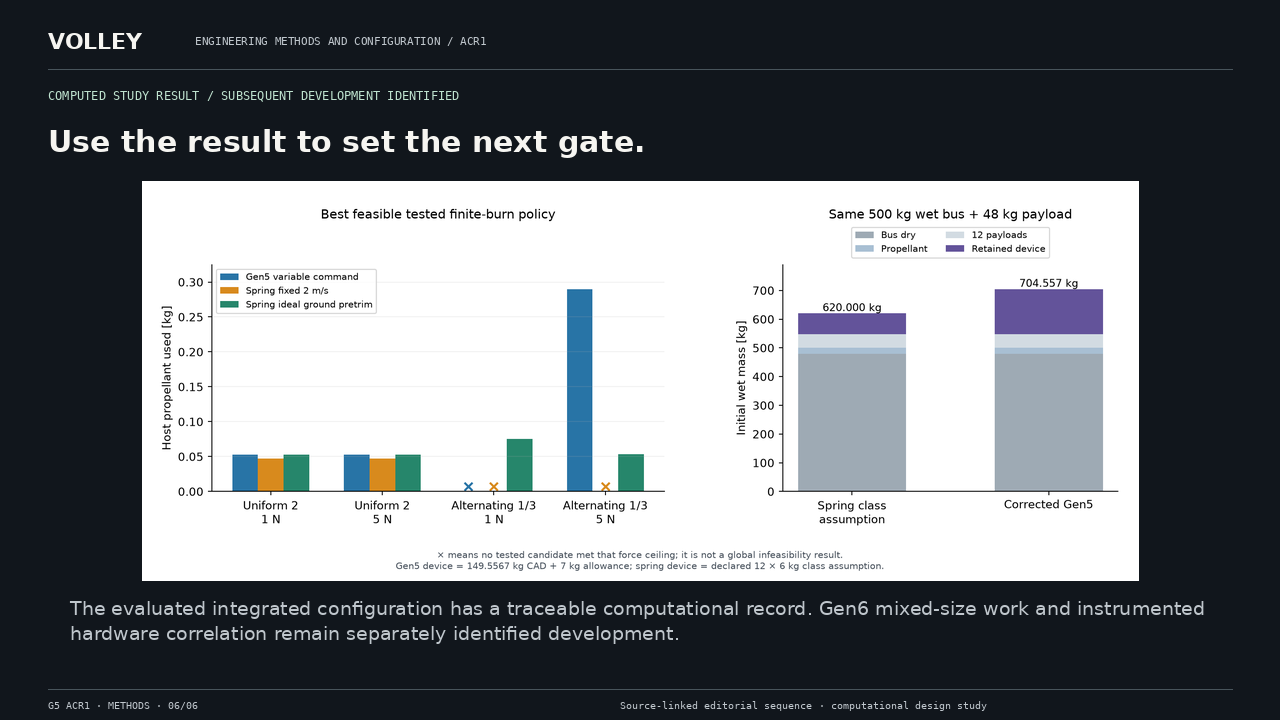

The evaluated integrated configuration has a traceable computational record. Gen6 mixed-size work and instrumented hardware correlation remain separately identified development.

Computed study result / subsequent development identified
